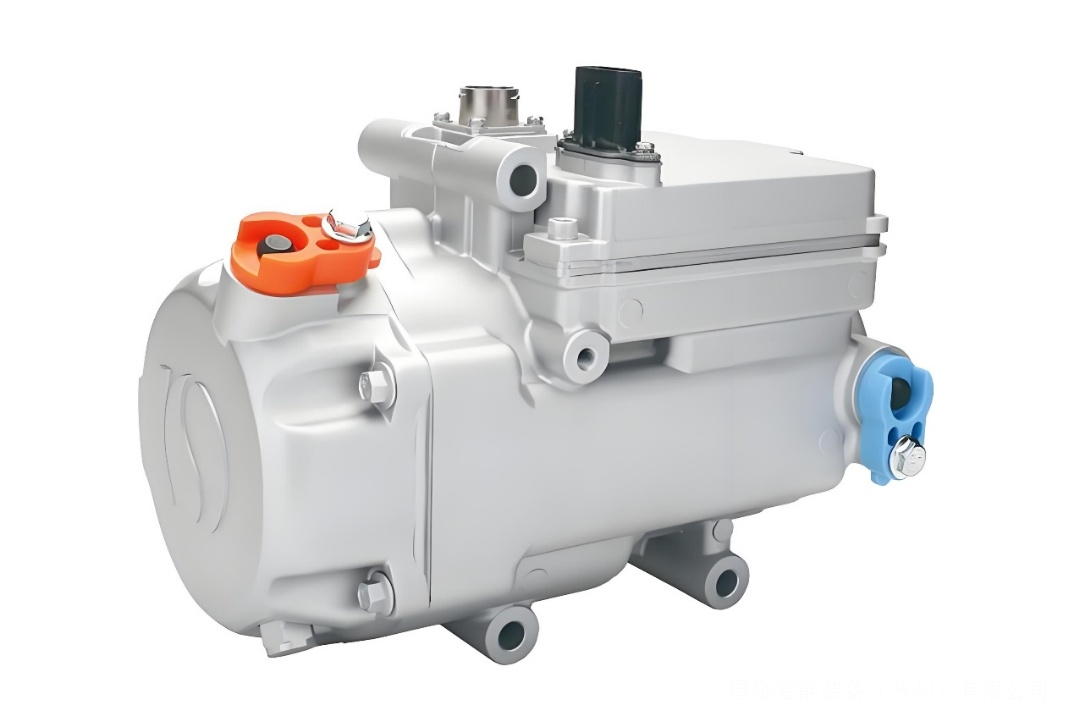

Existing electric compressor assembly lines suffer from insufficient multi-station positioning accuracy, cumbersome product changeover, low precision in manual pressing and bolting, and accumulated tolerances. Rotary index tables deployed in automated compressor lines deliver precise indexing positioning, drastically boosting assembly efficiency and accuracy.
Specifically, typical application scenarios of rotary index tables in electric compressor assembly are as follows:

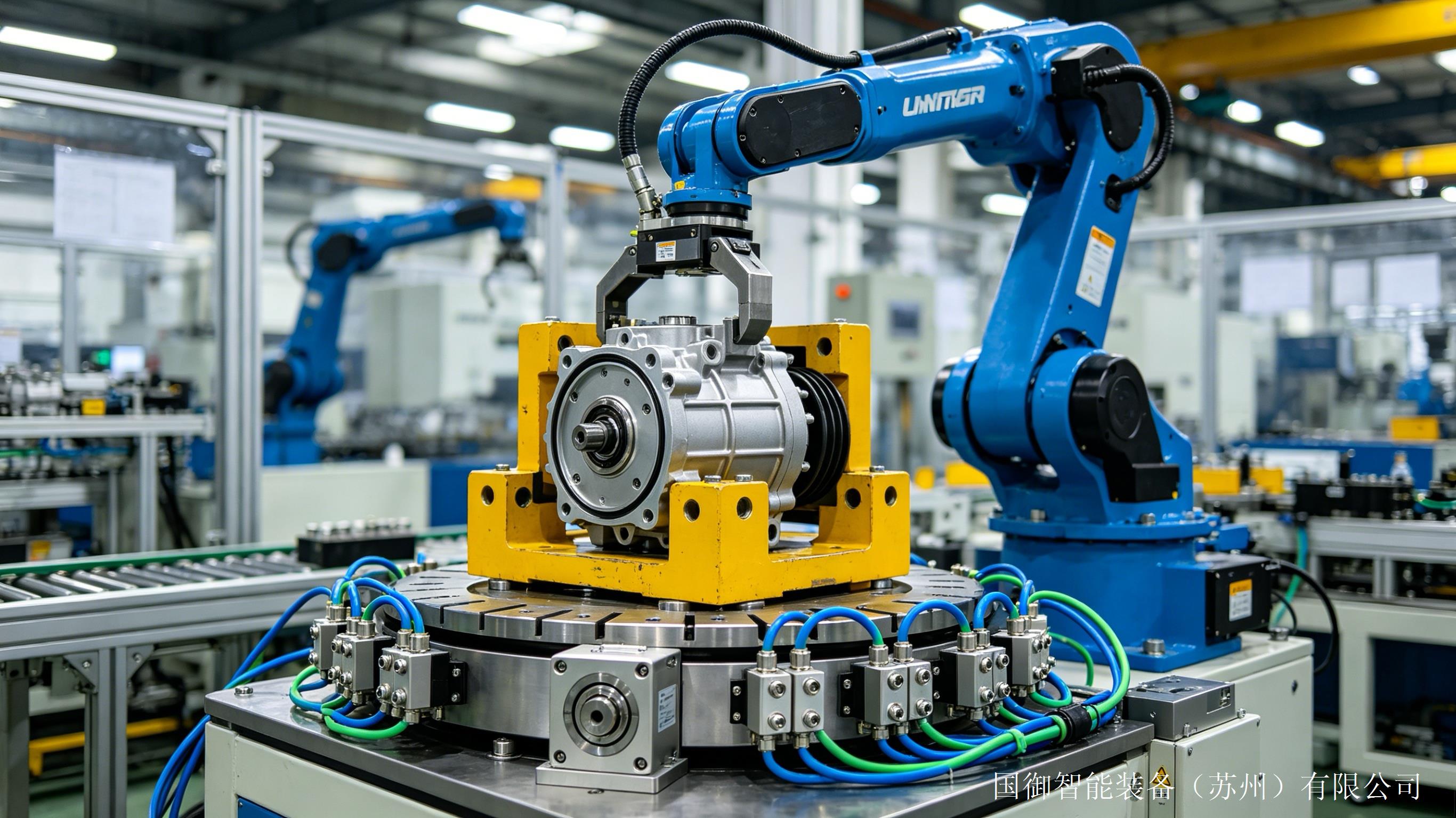

1.Synchronized Multi-station Collaborative Operation Compressor assembly consists of numerous critical processes including piston installation, valve plate assembly and housing sealing. The rotary table reasonably divides the entire assembly line into multiple stations that perform different operations simultaneously, greatly improving overall cycle efficiency. For instance, a 4-station rotary table can concurrently complete feeding, piston pressing, bolt tightening and online inspection to achieve streamlined high-efficiency production.
2.High-precision Repeat Positioning to Guarantee Assembly Quality The built-in cam indexing mechanism of the rotary table delivers a repeat positioning accuracy within ±0.05 mm. It ensures precise centering of compressor precision components such as crankshafts and bearings during assembly, effectively preventing premature wear or sealing leakage caused by misalignment, and greatly improving product consistency and reliability.
3.Flexibly Controllable Rotary and Intermittent Motion For complex processes such as rotor assembly and spiral alignment of screw compressors, the rotary table achieves an accurate intermittent motion mode of alternating movement and stop. It cooperates with manipulators or pressing equipment to ensure synchronous and smooth meshing, meeting the requirements of highly flexible production.
In summary, the adoption of rotary table technology effectively makes up for the deficiencies in precision and flexibility of traditional assembly methods. Supported by the combined solution of cam indexers and servo motors, it realizes synchronous multi-station operation, rapid model changeover and micron-level repeat positioning. It thoroughly solves pain points including large manual assembly errors, cumbersome product switching and poor coordination between processes, perfectly adapting to the high-precision mass production demands of various new energy electric compressors.
